【型號及規格參數】
| 型號 |
GQ系列離心機 |
通水能力（t/h） |
電機功率 |
整機重量 |
外形尺寸 |
| 直徑 |
轉鼓容積（L） |
轉速（r/min） |
| GQ150 |
142 |
10 |
10000-14000 |
1.5 |
3 |
700 |
600*500*1670 |
| GQ125 |
125 |
8 |
9000-15000 |
1.3 |
3 |
600 |
600*500*1670 |
| GQ105 |
105 |
6 |
8000-16300 |
1.2 |
2.2 |
450 |
600*500*1670 |
| GQX105 |
105 |
6 |
8000-16300 |
1.2 |
2.2 |
450 |
600*500*1670 |
| GQ75 |
75 |
2.2 |
10000-20000 |
0.6 |
1.5 |
300 |
500*450*1200 |
【主要特點】
分離能力強，料液澄清度高，結構簡單，操作維修方便，占地面積小。
G105、G150型通用機身系列是我廠做新開發的一種產品。
該系列產品的突出特點是G105、G150型機身為通用型，使其在一臺機身上，可根據生產需要更換分離轉鼓及集液等部件，不用另行購置整機就可實現不同的分離目的及產量。
【主要用途】
用于分離各種難于分離的懸浮液。特別適合于濃度小粘度大，固相顆粒細，固液重量差較小的固液分離。
例如，各種藥液、葡萄糖西必汰、蘋果酸、各種口服液、北豆根的澄清；煤焦油、石墨除渣，各種蛋白、藻類、果膠的提取；糖蜜的精制；血液分離，疫苗菌絲、各種葡萄糖的沉降，油漆、染料、各種樹脂、橡膠溶液提純。

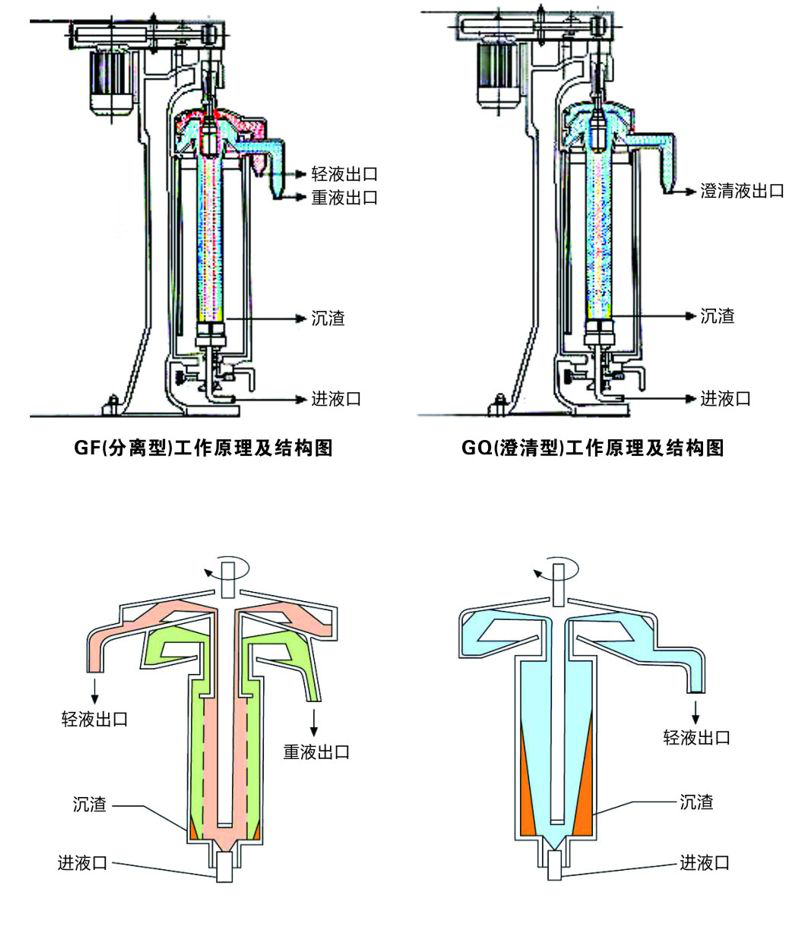

【工作原理】
分離機由機身、傳動系統、轉鼓、集液系統、進液系統組成。
轉鼓上部與撓性主軸鏈接，底部是阻尼滑動軸承。
設備工作時轉鼓繞自身軸線高速旋轉，形成強大的離心力場。物料由底部進液系統的進液噴嘴射入，轉鼓內的離心力迫使料液沿轉鼓內壁向上流動，且因料液不同組成的密度差而分層。
GQ105 tubular centrifuge
【Specification】
| Model |
GQ series tubular centrifuge |
Water supply capacity（t/h） |
Motor power（kw） |
Overall weight（kg） |
External dimensions（mm） |
| Diameter（mm） |
Bowl Volume（L） |
Speed（r/min） |
| GQ150 |
142 |
10 |
10000-14000 |
1.5 |
3 |
700 |
600*500*1670 |
| GQ125 |
125 |
8 |
9000-15000 |
1.3 |
3 |
600 |
600*500*1670 |
| GQ105 |
105 |
6 |
8000-16300 |
1.2 |
2.2 |
450 |
600*500*1670 |
| GQX105 |
105 |
6 |
8000-16300 |
1.2 |
2.2 |
450 |
600*500*1670 |
| GQ75 |
75 |
2.2 |
10000-20000 |
0.6 |
1.5 |
300 |
500*450*1200 |
【Characteristics】
Strong separation capability, high material liquid clarity, simple structure, convenient operation and maintenance, and small occupied area.
G105 and G150 general fuselage series are newly developed products by our factory.
The outstanding feature of this series of products is that G105 and G150 are of universal type, making it possible to replace the separation drum and liquid collecting components on one body according to production requirements, and to realize different separation purposes and output without purchasing a complete machine separately.
【Applications】
Used to separate various suspensions that are difficult to separate. It is especially suitable for solid-liquid separation with small concentration, large viscosity, fine solid phase particles and small solid-liquid weight difference.
For example, clarification of various liquid medicines, dextrose, chlorhexidine, malic acid, various oral liquids and radix sophorae tonkinensis; Coal tar, graphite slag removal, extraction of various proteins, algae, pectin; Refining molasses; Blood separation, settlement of vaccine hyphae and various glucose, purification of paint, dye, various resins and rubber solution.

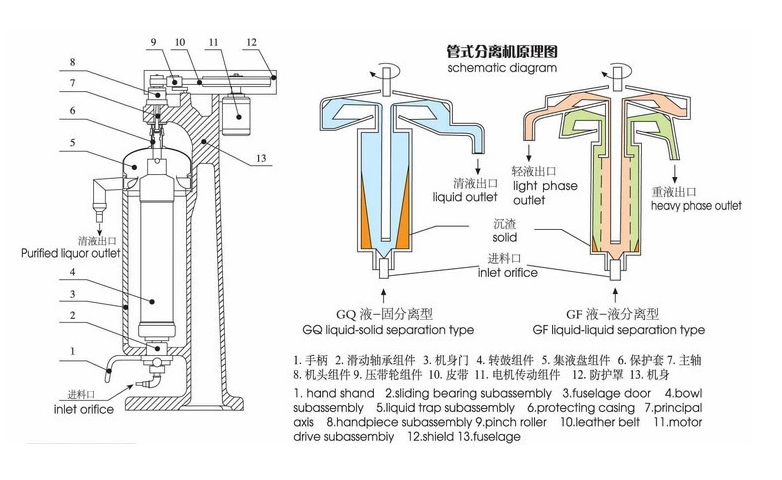

【Principle】
The separator consists of a machine body, a transmission system, a rotating drum, a liquid collecting system and a liquid inlet system.
The upper part of the rotating drum is linked with the flexible main shaft, and the bottom part is a damping sliding bearing.
When the equipment works, the rotating drum rotates at high speed around its own axis, forming a strong centrifugal force field. The material is injected from the liquid inlet nozzle of the bottom liquid inlet system, and the centrifugal force in the rotating drum forces the material liquid to flow upward along the inner wall of the rotating drum and delaminate due to the density difference of different composition of the material liquid.
