可采用變頻啟動，啟動平穩，分離因數可調，非接觸式能耗制動系統，防靜電皮帶傳動，機體密閉結構，密封件采用硅橡膠或氟橡膠?？蓪?shí)現密閉防爆要求。
結構：外殼配置翻蓋及進料管、洗滌管、觀察鏡、排氣口、照明孔。密閉結構，轉鼓及外殼、翻蓋等部件為不銹鋼材料制造。機座等為鑄造件。

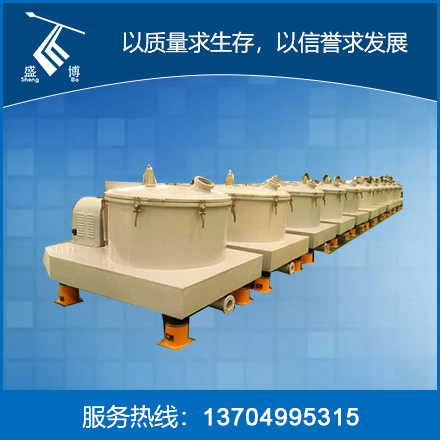

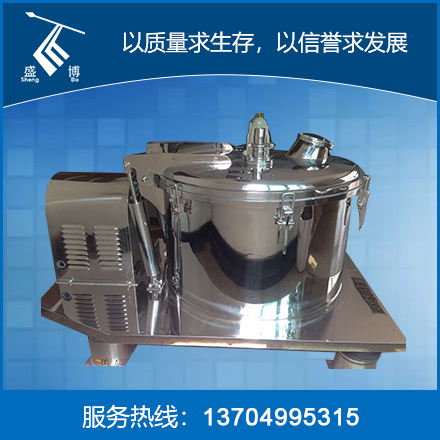

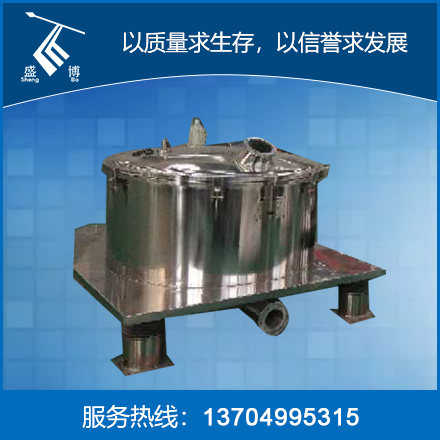

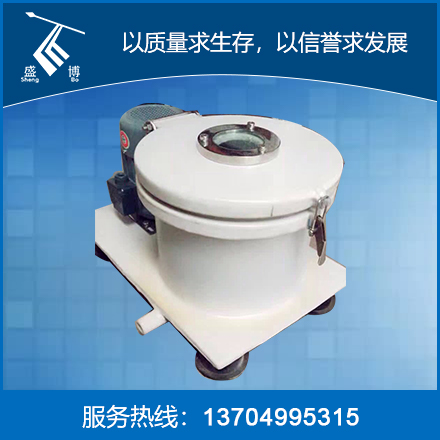

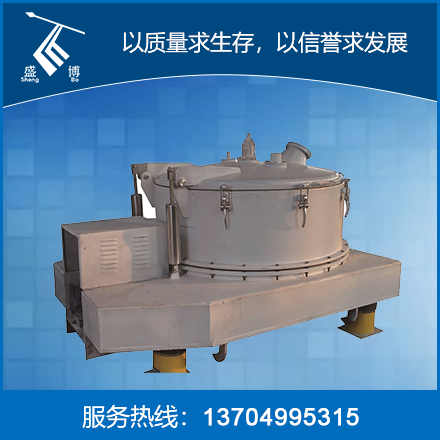

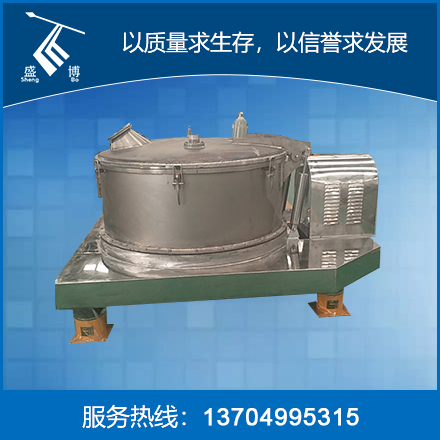

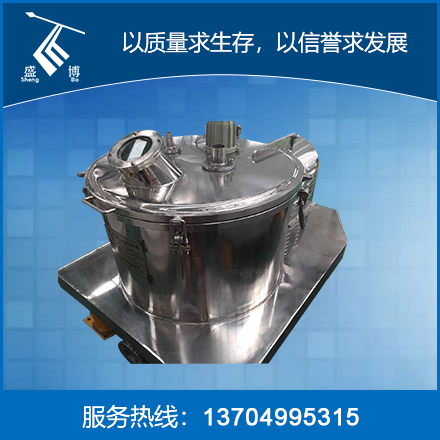

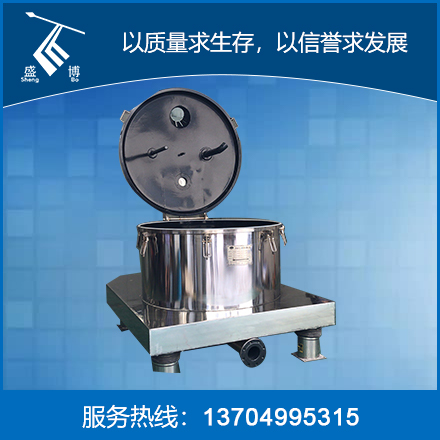

Plate upper discharge centrifuge
【Specification】
| Model |
Plate upper discharge centrifuge |
Separation factor（w2r/g） |
Motor power（kw） |
Overall weight（kg） |
External dimensions（mm） |
| Diameter（mm） |
Height（mm） |
Bowl Volume（L） |
Loading limit（kg） |
Speed（r/min） |
| PSB600 |
600 |
280 |
40 |
60 |
1600 |
860 |
3 |
850 |
1300*960*1020（1600） |
| PSB800 |
800 |
420 |
120 |
180 |
1350 |
820 |
5.5 |
2200 |
1700*1250*1300（2100） |
| PSB1000 |
1000 |
460 |
160 |
200 |
1200 |
800 |
7.5 |
2600 |
2000*1500*1400（2450） |
| PSB1250 |
1250 |
500 |
400 |
480 |
1050 |
740 |
18.5 |
3500 |
2300*1800*1480（2750） |
【Characteristics】
This machine is made of stainless steel except the drum bottom and tripod, which are lined with stainless steel. It fully complies with GMP standard.
The cover of the machine is in the form of gas spring assisted cover removal. The feeding pipe and washing pipe adopt quick joints. The cover is equipped with sight glasses and vent holes, making the whole equipment easy to clean.
Variable frequency starting can be adopted, starting is stable, separation factor is adjustable, non-contact energy consumption braking system, anti-static belt transmission, body sealing structure, and sealing element adopts silicone rubber or fluororubber. The requirement of airtight explosion prevention can be met.
This machine adopts direct-coupled two-speed motor and electric brake, which is completely suitable for enterprises with inflammable and explosive materials and high cleaning requirements.
【Applications】
Widely used in solid-liquid separation of suspension materials with granular solid phase.
For example, gypsum, oxalic acid, copper sulfate, potassium chloride, salt, monosodium glutamate, food additives, starch, silk sugar, chemical seasonings, antibiotics, vitamins, caffeine, sludge treatment, sewage treatment, etc.
In addition to general use, flat plate is especially suitable for solid-liquid separation of medium with high viscosity, toxic, harmful, flammable, explosive, etc.
【Standard manufacturing form】
Structure: The housing is equipped with flip cover, feed pipe, washing pipe, observation mirror, exhaust port and lighting hole. Closed structure, drum, shell, flip cover and other parts are made of stainless steel. The machine base and the like are cast pieces.
All fasteners are stainless steel.
Transmission and braking: explosion-proof motor+friction type automatic clutch+friction type manual braking device.
In addition to the clean type with a wide range of uses, we can customize tetrafluoroethylene type, lining plastic type, PE type and titanium plate centrifuge according to the needs of enterprises.
