【型號及規格參數】
| 型號 |
臥螺單級活塞推料離心機 |
分離因素（w2r/g） |
電機功率 |
整機重量 |
外形尺寸 |
| 直徑 |
過濾長度 |
進料次數（次/min） |
處理量（T/h） |
轉速（r/min） |
| HY400 |
400 |
160/160 |
1-75 |
1-2 |
2200 |
1857 |
11-5.5 |
3800 |
2500*1300*1155 |
| HY500 |
500 |
200/200 |
40-80 |
2-5 |
1800 |
1050 |
37-22 |
4200 |
3000*1600*1200 |
| HY630 |
630 |
240/240 |
40-108 |
5-10 |
1800 |
1150 |
45-30 |
5500 |
3130*1840*1265 |
【主要特點】
HY系列離心機是一種臥式活塞推料、連續操作過濾離心機。
本機能在全速運轉下，連續進行進料、分離、洗滌、卸料等工序。
具有連續操作、運轉平穩、操作簡便、生產能力大、洗滌效果好、濾餅含濕率較低等特點。
【主要用途】
適合分離含固相物顆粒度大于0.1mm，濃度大于40%的懸浮液。
適用于化工、化肥、制堿、制鹽等行業，特別適用于鹽酸氫銨、氯化銨、芒硝、棉花籽酸洗等固液分離。
【工作原理】
主電機帶動轉鼓全速運轉，物料由進料管連續引入，均勻分布到轉鼓內段濾網壁上，在離心力作用下，液相物穿過濾網和轉鼓壁濾孔排出轉鼓，經機殼排液管排出機外，固相物截留在轉鼓內，形成環形濾餅層。
推料盤與轉鼓同速旋轉的同時，在活塞推動下，連續軸向往復運動，推動濾餅層間歇不斷的向轉鼓外端移動排出轉鼓，從前機殼底部排出機外。

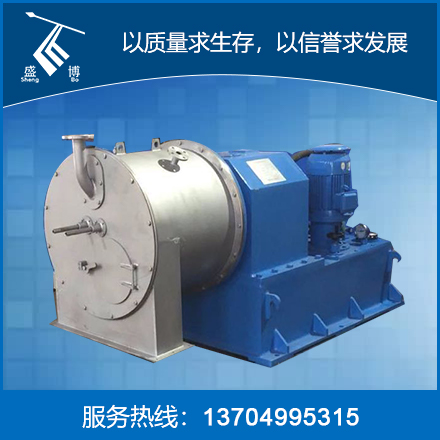

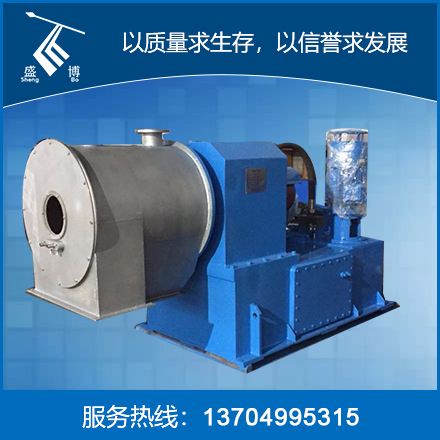

Horizontal screw single-stage piston push centrifuge
【Specification】
| Model |
Horizontal screw single-stage piston push centrifuge |
Separation factor（w2r/g） |
Motor power（kw） |
Overall weight（kg） |
External dimensions（mm） |
| Diameter（mm） |
Filter length（mm） |
Feed times
(t /min) |
Capacity (T/h) |
Speed（r/min） |
| HY400 |
400 |
160/160 |
1-75 |
1-2 |
2200 |
1857 |
11-5.5 |
3800 |
2500*1300*1155 |
| HY500 |
500 |
200/200 |
40-80 |
2-5 |
1800 |
1050 |
37-22 |
4200 |
3000*1600*1200 |
| HY630 |
630 |
240/240 |
40-108 |
5-10 |
1800 |
1150 |
45-30 |
5500 |
3130*1840*1265 |
【Characteristics】
HY Series Centrifuge is a horizontal piston pushing and continuous operation filtering centrifuge.
This machine can continuously feed, separate, wash and discharge at full speed.
It has the characteristics of continuous operation, stable operation, simple operation, large production capacity, good washing effect, low moisture content of filter cake, etc.
【Applications】
It is suitable for separating suspension with particle size greater than 0.1mm and concentration greater than 40%.
It is suitable for chemical industry, chemical fertilizer, alkali making, salt making and other industries, especially for solid-liquid separation such as ammonium bicarbonate, ammonium chloride, mirabilite, cotton seed pickling, etc.
【Principle】
The main motor drives the rotating drum to run at full speed, and the materials are continuously introduced by the feed pipe and evenly distributed on the filter screen wall of the inner section of the rotating drum. Under the action of centrifugal force, liquid substances pass through the filter screen and the filter holes of the wall of the rotating drum to be discharged out of the machine through the liquid discharge pipe of the casing, and solid substances are trapped in the rotating drum to form an annular filter cake layer.
At the same time of rotating at the same speed as the rotating drum, the material pushing disc continuously reciprocates axially under the push of the piston, pushing the filter cake layer to intermittently and continuously move to the outer end of the rotating drum to discharge the rotating drum from the bottom of the front casing.
