【型號及規格參數】

型號	GQD150K大開門變頻管式離心機			分離因素（w2r/g）	電機功率	整機重量	外形尺寸
	直徑	轉鼓容積（L）	轉速（r/min）
105	105	6	8000-16300	15700	2.2	570	840*500*1600
125	125	8	9000-15000	15750	3	610	900*500*1600
150	150	10	10000-14300	14300	3	665	900*550*1600

【主要特點】

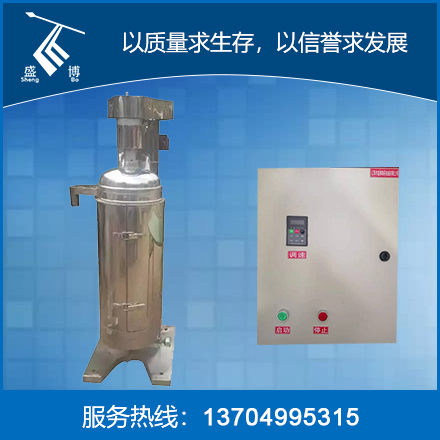

本機是我公司在GQ150變頻高速離心機后又研發出來的一款新型大開門高速變頻離心機。
大開門離心機易損件使用壽命長，設備不易損壞，啟動平穩，比搖擺式離心機使用壽命長，占地空間小，操作簡單，大大提高了操作的安全系數。設計成可開門機身大大的降低了勞動強度，而且并可根據現場空間將轉鼓水平拉出，置于特制的不銹鋼操作臺上，清除固相物，實現快捷方便的清理
啟動時手動調速，緩慢啟動，對軸承和轉鼓起到極好的保護作用，降低更換易損件頻率，防止轉鼓摔傷，減少轉鼓做動平衡次數，增加易損件的使用壽命。

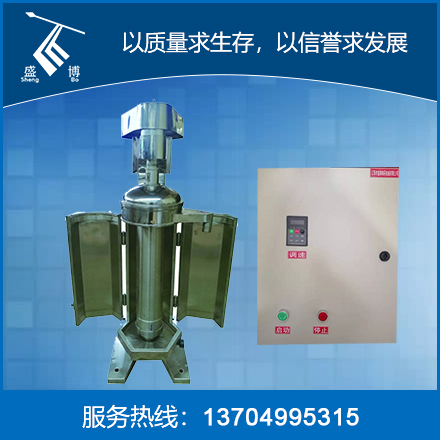

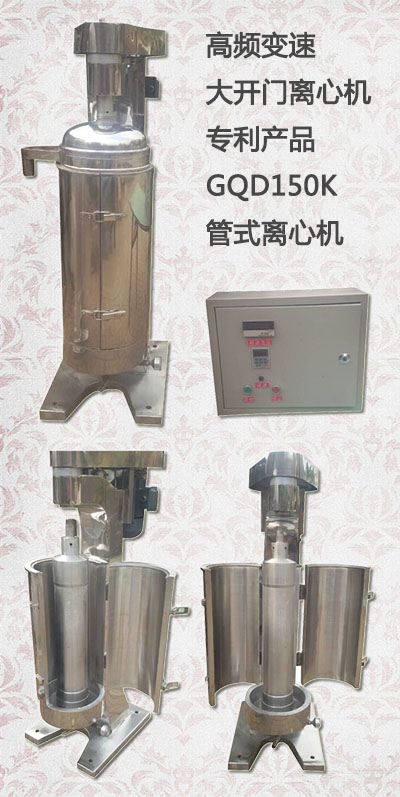

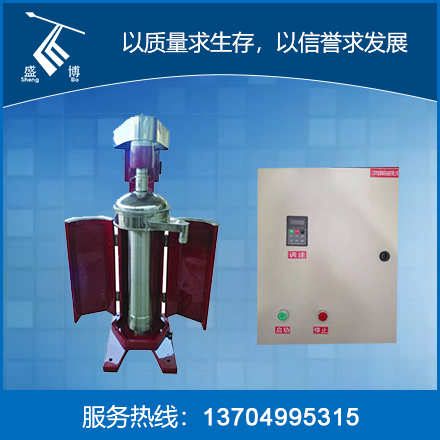

停機拆卸時，機身兩側門可以全部打開，輕松把沉重的轉鼓取出清洗。

【主要用途】
本機主要用于分離各種難于分離的懸浮液，將懸浮液中的絮狀物及微小固體顆粒分離出來。
特別適用于濃度低、粘度大、固相顆粒細小、固液比重差較小的。
如：動植物提取液、發酵液，各種中藥液體、膏劑除渣，蘋果酸，各種口服液，北豆根澄清；石墨澄清，各種油漆、機油、柴油、煤焦油、潤滑油等除渣，各種蛋白、菌體的分離和濃縮，阿膠提純。



【工作原理】
分離機由機身、傳動系統、轉鼓、集液系統、進液系統組成。
轉鼓上部與撓性主軸鏈接，底部是阻尼滑動軸承。
設備工作時轉鼓繞自身軸線高速旋轉，形成強大的離心力場。物料由底部進液系統的進液噴嘴射入，轉鼓內的離心力迫使料液沿轉鼓內壁向上流動，且因料液不同組成的密度差而分層。



GQD150K Large-opening frequency conversion tubular centrifuge

【Specification】

Model	GQD150K Large-opening frequency conversion tubular centrifuge			Separation factor（w2r/g）	Motor power（kw）	Overall weight（kg）	External dimensions（mm）
	Diameter（mm）	Bowl Volume（L）	Speed（r/min）
105	105	6	8000-16300	15700	2.2	570	840*500*1600
125	125	8	9000-15000	15750	3	610	900*500*1600
150	142	10	10000-14300	14300	3	665	900*550*1600



【Characteristics】
This machine is a new type of large-opening high-speed frequency conversion centrifuge developed by our company after GQ105 frequency conversion high-speed centrifuge.
The quick-wear parts of the large-opening centrifuge have long service life, the equipment is not easy to damage, the starting is stable, the service life is longer than that of the swing centrifuge, the occupied space is small, the operation is simple, and the safety factor of the operation is greatly improved.  The machine body designed to open the door greatly reduces the labor intensity, and the rotating drum can be horizontally pulled out according to the site space and placed on a special stainless steel operation table to remove solid matters and realize quick and convenient cleaning.
Manual speed regulation and slow start during start-up play an excellent role in protecting bearings and rotating drums, reducing the frequency of replacing wearing parts, preventing the rotating drum from falling, reducing the number of dynamic balancing times of the rotating drum, and prolonging the service life of wearing parts.
When the machine is stopped and disassembled, the doors on both sides of the machine body can be fully opened, and the heavy rotating drum can be easily taken out for cleaning.

【Applications】
This machine is mainly used to separate various suspensions that are difficult to separate, and to separate flocs and tiny solid particles from the suspensions.
It is especially suitable for those with low concentration, large viscosity, fine solid particles and small solid-liquid specific gravity difference.
For example, animal and plant extract, fermentation liquor, various traditional Chinese medicine liquid, paste deslagging, malic acid, various oral liquids, and Asiatic moonseed rhizome clarification;  Graphite clarification, deslagging of various paints, engine oil, diesel oil, coal tar, lubricating oil, etc., separation and concentration of various proteins and thalli, and purification of donkey-hide gelatin.


【Principle】
The separator consists of a machine body, a transmission system, a rotating drum, a liquid collecting system and a liquid inlet system.
The upper part of the rotating drum is linked with the flexible main shaft, and the bottom part is a damping sliding bearing.
When the equipment works, the rotating drum rotates at high speed around its own axis, forming a strong centrifugal force field.  The material is injected from the liquid inlet nozzle of the bottom liquid inlet system, and the centrifugal force in the rotating drum forces the material liquid to flow upward along the inner wall of the rotating drum and delaminate due to the density difference of different composition of the material liquid.
