【型號及規格參數】

型號	高速變頻離心機			分離因素（w2r/g）	電機功率	整機重量	外形尺寸
	直徑	轉鼓容積（L）	轉速（r/min）
75	75	2.2	10000-19000	15200	1.5	300	760*450*1600
105	105	6	8000-16300	15700	2.2	570	840*500*1600
125	125	8	9000-15000	15750	3	610	900*500*1600
150	142	10	10000-14300	14300	3	665	900*550*1600

【主要特點】
高速變頻離心機是我公司經過多年研究而成的專利產品。
普通離心機直接啟動，超負荷對離心機使用壽命有很大影響，維修頻繁，需要經常更換易損件。
我司的專利產品啟動時手動調速，緩慢啟動，對軸承和轉鼓起到極好的保護作用，降低更換易損件頻率，防止轉鼓摔傷，減少轉鼓做動平衡次數，降低成本，大大提高生產量。
根據分離物料要求，利用變頻器調節電流頻率實現不同轉數，不用的離心力分離的效果也是不同。

【主要用途】
通過本機對液體中的雜質分離，根據手動定速達到澄清的效果。用于分離各種難于分離的懸浮液。
例如，動植物提取液、發酵液，各種重要液體、膏劑除渣，蘋果酸，各種口服液，北豆根澄清：石墨澄清，各種油漆、機油、柴油、煤焦油。潤滑油等除渣，各種發酵液、蛋白、細菌的分離和濃縮，阿膠提純。

【工作原理】
分離機由機身、傳動系統、轉鼓、集液系統、進液系統組成。
轉鼓上部與撓性主軸鏈接，底部是阻尼滑動軸承。
設備工作時轉鼓繞自身軸線高速旋轉，形成強大的離心力場。物料由底部進液系統的進液噴嘴射入，轉鼓內的離心力迫使料液沿轉鼓內壁向上流動，且因料液不同組成的密度差而分層。

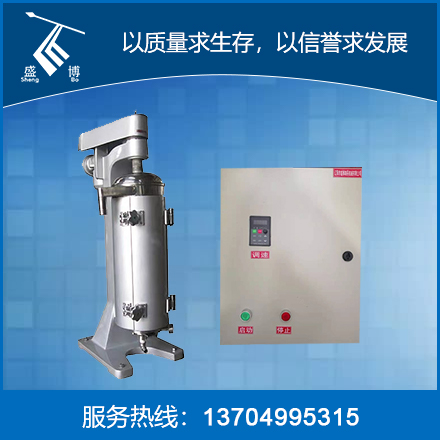

High speed frequency conversion centrifuge
【Specification】

Model	High speed frequency conversion centrifuge			Separation factor（w2r/g）	Motor power（kw）	Overall weight（kg）	External dimensions（mm）
	Diameter（mm）	Bowl Volume（L）	Speed（r/min）
75	75	2.2	10000-19000	15200	1.5	300	760*450*1600
105	105	6	8000-16300	15700	2.2	570	840*500*1600
125	125	8	9000-15000	15750	3	610	900*500*1600
150	142	10	10000-14300	14300	3	665	900*550*1600




【Characteristics】
High-speed frequency conversion centrifuge is a patented product developed by our company after years of research.
Ordinary centrifuges are started directly. Overload has a great impact on the service life of centrifuges. Maintenance is frequent and vulnerable parts need to be replaced frequently.
The patented products of our company can be started manually and slowly, which can play an excellent role in protecting bearings and rotating drums, reducing the frequency of replacing vulnerable parts, preventing the rotating drums from falling, reducing the number of dynamic balancing times of the rotating drums, reducing the cost and greatly increasing the production.
According to the requirements of separating materials, the frequency of the current is adjusted by the frequency converter to realize different revolutions, and the effect of centrifugal force separation that is not used is different.



【Applications】
This machine is mainly used to separate various suspensions that are difficult to separate, and to separate flocs and tiny solid particles from the suspensions.
It is especially suitable for those with low concentration, large viscosity, fine solid particles and small solid-liquid specific gravity difference.
For example, animal and plant extract, fermentation liquor, various traditional Chinese medicine liquid, paste deslagging, malic acid, various oral liquids, and Asiatic moonseed rhizome clarification;  Graphite clarification, deslagging of various paints, engine oil, diesel oil, coal tar, lubricating oil, etc., separation and concentration of various proteins and thalli, and purification of donkey-hide gelatin.


【Principle】
The separator consists of a machine body, a transmission system, a rotating drum, a liquid collecting system and a liquid inlet system.
The upper part of the rotating drum is linked with the flexible main shaft, and the bottom part is a damping sliding bearing.
When the equipment works, the rotating drum rotates at high speed around its own axis, forming a strong centrifugal force field.  The material is injected from the liquid inlet nozzle of the bottom liquid inlet system, and the centrifugal force in the rotating drum forces the material liquid to flow upward along the inner wall of the rotating drum and delaminate due to the density difference of different composition of the material liquid.
